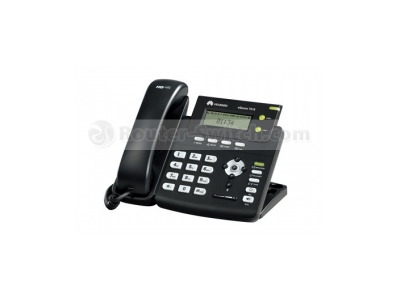

IP-телефон Huawei EAUS78101

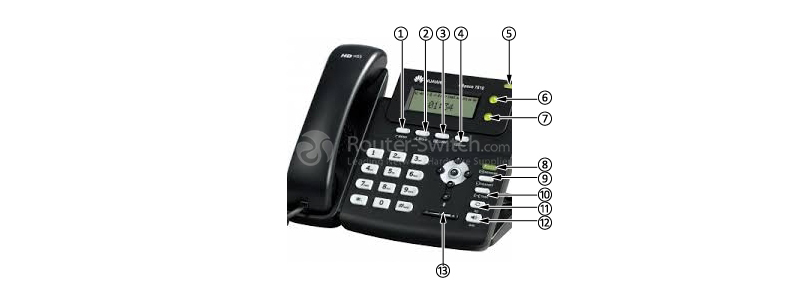

①

Menu

②

Hold

③

Conference

④

Contact

⑤

Power Indication LED

⑥

Line Key

⑦

Line Key

⑧

Message

⑨

Headset

⑩

Transfer

⑪

Redial

⑫

Speaker

⑬

Volume Adjustment Bar

Key and Indicator

Description

Menu

·On the standby screen, press this key to display the main menu.

·On any other screen, press this key to return to the previous menu.

·During a call, press this key to end the call.

Contact

Press this key to display the contact list.

Power Indication LED

This indicator indicates the power supply status.

·When eSpace 7810 is powered on, the indicator is on.

·When eSpace 7810 is powered off, the indicator is off.

·When eSpace 7810 has an incoming call or when it is muted during a call, the indicator blinks.

Line Key

Line keys indicate the status of the two accounts. You can set line keys to Direct Station Selection (DSS) keys for other use.

Conference

Press this key to create a multi-party conference.

Message

When you receive a new voice message, the indicator blinks.

·If you have set Account No., the voice mailbox is automatically connected after you press this key.

·If there is no new voice message, the page for setting voice mailbox connection code for the default account is automatically displayed after you press this key.

Headset

On the dialing page or conversation page, press this key to change the conversation mode.

·In a conversation with a handset, press this key to access the headset mode, and press this key again to restore the handset mode.

·In a conversation in the hand-free mode, press this key to access the headset mode, and press this key again to restore the hand-free mode.

Transfer

Press this key to transfer a call to another party.

Redial

In the standby state, press this key to access the page displaying numbers that you have dialed.

Select a record and press this key again to initiate a call.

Speaker

Press this key to answer an incoming call in the hand-free mode.

On the dialing page or conversation page, press this key to change the conversation mode.

· In a conversation with a handset, press this key and put down the handset to access the hand-free mode. To restore the handset mode, press this key again.

· In a conversation with a headset, press this key to access the hand-free mode, and press this key again to restore the headset mode.

Volume Adjustment Bar

Adjusts the receiving volume for the handle, headset, and ring tone, and the receiving volume in the hand-free mode.

Hold

Press this key to hold or unhold a call.

Product Code

EAUS78101

EAUS78201

EAUS78301

EAUS78501

Display

2.74”LCD
75x16 pixel, 2x15characters

2.87”LCD
132x64 pixel

3.24”graphic LCD
132x64pixel

4.09”graphic LCD
320x160 pixel

Lines

2 lines

3 lines

3 lines

6 lines

Line buttons

2

3

3

6

Programmable buttons

0

0

10

10

Softkeys

0

4

4

4

PoE(802.3af)

√

√

√

√
