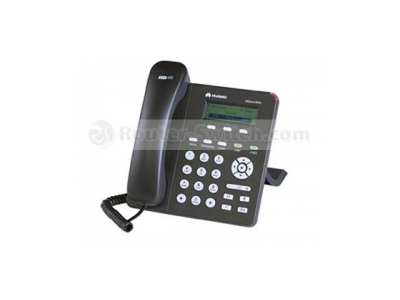

IP-телефон Huawei IP1T6805US01

①

Soft Key

②

Line Key

③

Arrow Key

④

Menu Key

⑤

Headset Key

⑥

Volume Key

⑦

Mute Key

⑧

Hands-free Key

⑨

Send Key

⑩

Three Way Conference

⑪

Hold Key

⑫

Call Transfer Key

⑬

Dialingt Key

Step 1

Use the coiled handset cord to connect the handset to the main case.

Step 2

Use the straight-through cable to connect the local area network (LAN)

interface of the eSpace 6805 to the uplink network interface (for example, the

network interface in your office or at your home).

Note: If you have only one external network port but want to connect the computer

and eSpace 6805 at the same time, perform Step 2 and use another

straight-through network cable to connect the computer to the PC port on the

eSpace 6805.

Step 3

Insert the output end of the specialized power adapter into the power interface

of the eSpace 6805 and the other end into a socket.

Product Code

IP1T6805EU01

IP1T6805UK01

IP1T6805US01

Part Number

02160347

02160345

02160346

Description

IP Terminal phone eSpace 6805(Europe)

IP Terminal phone eSpace 6805(UK)

IP Terminal phone eSpace 6805(USA)

External port

·Ethernet ports: 2 ports, 10/100 Mbps

·Earphone ports: RJ-9

·Ethernet ports: 2 ports, 10/100 Mbps

·Earphone ports: RJ-9

·Ethernet ports: 2 ports, 10/100 Mbps

·Earphone ports: RJ-9

Function key

Call transfer key, Three way conference key, hands-free key, Headset key, mute key, Call holding key, Sending key, Volume adjustment key,5 navigation keys, 2 LINE keys, and 3 function softkeys

Call transfer key, Three way conference key, hands-free key, Headset key, mute key, Call holding key, Sending key, Volume adjustment key,5 navigation keys, 2 LINE keys, and 3 function softkeys

Call transfer key, Three way conference key, hands-free key, Headset key, mute key, Call holding key, Sending key, Volume adjustment key,5 navigation keys, 2 LINE keys, and 3 function softkeys

Call feature

Call holding, call transfer, call waiting, DND, call forwarding, call muting, redial, call record, volume adjustment, hotline service, and automatic response.

Call holding, call transfer, call waiting, DND, call forwarding, call muting, redial, call record, volume adjustment, hotline service, and automatic response.

Call holding, call transfer, call waiting, DND, call forwarding, call muting, redial, call record, volume adjustment, hotline service, and automatic response.

Function

Phone book: Stores records of up to 200 contacts, and allows users to manually enter contact information or import contact information from an XML file that is downloaded from the file server

Phone book: Stores records of up to 200 contacts, and allows users to manually enter contact information or import contact information from an XML file that is downloaded from the file server

Phone book: Stores records of up to 200 contacts, and allows users to manually enter contact information or import contact information from an XML file that is downloaded from the file server
