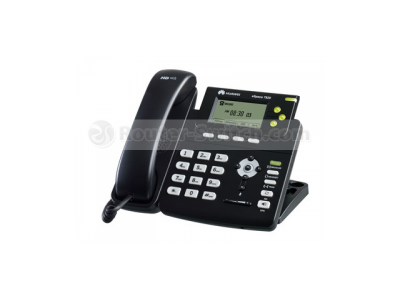

IP-телефон Huawei IP1T7820US01

①

Power Indication LED

②

Line Key

③

Soft KeyConference

④

Message  Contact

⑤

Headset

⑥

Transfer

⑦

Redial

⑧

Speaker

⑨

Navigation Key

⑩

Volume Adjustment Bar

⑪

Digital Key

Key and Indicator

Description

Power Indication LED

This indicator indicates the power supply status.

·When eSpace 7820 is powered on, the indicator is on.

·When eSpace 7820 is powered off, the indicator is off.

·When eSpace 7820 has an incoming call or when it is muted during a call, the indicator blinks.

Line Key

Line keys indicate the status of the two accounts. You can set line keys to Direct Station Selection (DSS) keys for other use.

Soft Key

The phone screen displays function names of the four soft keys. For example, soft keys are marked as History, Directory, DND, and Menu on the standby screen.

Message

Blinks when you receive a new voice message.

·If there is no new voice message, the page for setting voice connection code is displayed after you press this key.

·If you have set a voice access code, the voice mailbox is accessed after you press this key.

Headset

On the dialing page or conversation page, press this key to change the conversation mode.

· If eSpace 7820 is in the handset mode, press this key to access the headset mode. To restore the handset mode, press this key again.

· If eSpace 7820 is in the hand-free mode, press this key to access the headset mode. To restore the hand-free mode, press this key again.

Transfer

Press this key to transfer a call to another party.

Redial

In the standby state, press this key to access the page displaying numbers that you have dialed.

Select a record and press this key again to initiate a call.

Speaker

Answers an incoming call in the hand-free mode.

On the dialing page or conversation page, press this key to change the conversation mode.

· If eSpace 7820 is in the handset mode, press this key to access the hand-free mode. To restore the handset mode, press this key again.

· If eSpace 7820 is in the headset mode, press this key to access the hand-free mode. To restore the headset mode, press the Headset key.

Volume Adjustment Bar

Adjusts the receiving volume for the handle, headset, and ring tone, and the receiving volume in the hand-free mode.

Navigation Key

Includes four arrow keys (up, down, left, and right), one OK key, and one X key.

· Arrow keys: move the cursor on difference pages.

· OK key: access the menu that is selected or confirm an operation, or answer an incoming call if any.

·X key: cancel an operation, return to the upper-level menu, reject an incoming call (in the ringing state), or mute a call.

Digital Key

Enters alphanumeric and special characters.

To enter digits, lowercase letters, uppercase letters, and special characters, switch the entering mode.

Product Code

IP1T7810UK01

IP1T7820US01

IP1T7830EU01

IP1T7850EU01

Display

2.74”LCD
75x16 pixel, 2x15characters

2.87”LCD
132x64 pixel

3.24”graphic LCD
132x64pixel

4.09”graphic LCD
320x160 pixel

Lines

2 lines

3 lines

3 lines

6 lines

Line buttons

2

3

3

6

Programmable buttons

0

0

10

10

Softkeys

0

4

4

4
