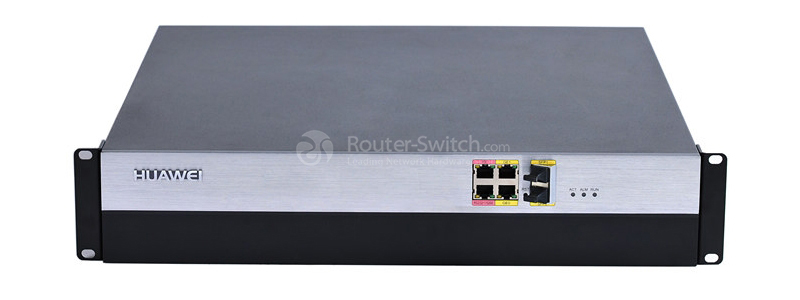

Платформа услуг видеоконференцсвязи Huawei VC6M1CUAA

Item

VC6M1CUAA

Capacity

Dynamic flexible ports：
Up to 12 HD 1080p60 ports in CP
= 24 HD 1080p30 ports in CP
= 48 HD 720p30 ports in CP
= 96 4CIF ports in CP
VOIP port：
Quantity same as that of 1080p30 ports

Video Standards and Protocols

ITU-T H.264, H.264 HP, H.264 SVC, H.263, H.263+, H.263++, H.261

ITU-T H.239, BFCP

People Video Resolution

Resolution: QCIF, CIF, 4CIF, 720p, 1080p

Video Frame Rate: 25fps, 30fps, 50fps, 60fps

Content Video Resolution

Standard resolution from VGA to 1080p60

Audio Standards and Protocols

AAC-LD, HWA-LD, G.722.1*, G.722.1C*, G.711, G.722, G.728, G.729A, G.729AB, G.719, iLBC

Three-channel

Other Supported Standards

H.221, H.225, H.235, H.242, H.243, H.245, H.281, H.283, H.460, TIP, FECC, RFC2833, DTMF, SRTP, TLS, T.140, NTP

Network

Standards and protocols: ITU-T H.323, H.320 (VP9660&VP9650 support), IETF SIP

Network standards: TCP/IP, FTP/FTPS, RTP, RTCP, HTTP/HTTPS, SNMP, TELNET, SSH, DNS/DDNS

Bandwidth for one port: 64Kbps～8Mbps

Network Interfaces:

GE, 1000 Mb, RJ45

FE, 100 Mb, RJ45

RS232, RJ45

SFP, Gigabit optical fiber interface

PRI E1 or T1: 75/120 ohm, SMB/RJ45

Line Types: IP, ISDN

Management Tools

Support SSH

Remote upgrade

Resource statistic

Hardware diagnosis

Support CDR (Call Detail Record)

Data export and import

Support Conference configuration template

Status monitor

IP QoS

DiffServ (DSCP),  IP precedence, ARQ

SEC™3.0 (Super Error Concealment )

IRC™ (Adaptability Intelligent Rate Control )

Auto adaptation enabling

Priority settings of QoS

SNP transversal between private and public networks

H.460/Static NAT transversal

Security

Conference password

HTTPS ensures the safety for Web accessing

H.235 (AES256) and SRTP/TLS(AES256) encryption

Approval and Compliance

CE, WEEE, RoHS, REACH, FCC, UL, VCCI-A, GOST, C-TICK

Operating Environment

Operating temperature: 0℃ ~ 45℃

Relative humidity: 5% ~ 90% (Non - Condensing)

Air pressure: 63 ~ 106KPa

Reliability MTBF: >100,000 hours

MTTR: < 0.5 hour

Highlights

Embedded web, embedded GK(VP9650&VP9630 support)

Universal transcoding for telepresence

CP on each port

Auto continuous presence

Dynamic flexible ports

48 modes of continuous presence

Ad hoc and audio/video IVR

HUAWEI SiteCall™

Schedule conferences via web (VP9650&VP9630 support) and Outlook

Email notification

URI dialing

Plenty of conference control functions

Chair control

Endpoint control via DTMF

Message overlay

Mute video

Support camera control

Support content lock

Support video source lock

Firewall traversal: H.460, static NAT, HUAWEI SNP, Video firewall option

Integrated with UC: Huawei eSpace, Microsoft Lync2010™/OCS2007R2, and IBM Sametime

Intelligent negotiation: best utilization of endpoint’s ability

Language: English, French, German, Spanish, Russian, Chinese, Japanese

Dimension

86.1mm(H) × 442mm(W) × 450mm(D), 2U

Weight

 < 20Kg

Power

AC input: 100 ～ 240V 50/60HZ

DC input: None

Max power consumption: 400W

Hot spare

MCU, power, network interface, chipset
