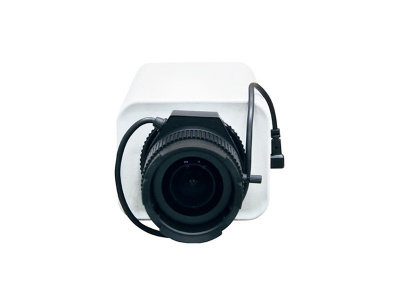

IP-камера Huawei IPC6111-I

Product Code

IPC6111-I

Image sensor

1/3” 1.3-megapixel Progressive Scan CMOS

Effective pixels

1280(H)×720(V)

Minimum Illumination

Multicolor: 0.02Lux (50IRE, F1.4, AGC ON)
B/W: 0.01Lux (50IRE, F1.4, AGC ON)

Day/Night mode

IR cut filter with auto switch

Electronic shutter speed

1/67,500s to 1/25s

Gain control

Auto

White balance

Auto/Manual

Lens interface

Accepts C or CS mount lens (CS-mount lens with a C-to-CS- mount adapter)

Lens control

DC drive auto iris

Video encoding format

H.264 High profile @ level 4，MJPEG

Video resolution and frame rate

720p@60fps, D1@30fps, CIF@30fps,

Video bit rate

720P:512Kbps to 8Mbps,D1: 300Kbps to 4Mbps,CIF: 100Kbps to 1Mbps

ROI

Supported

Multiple-Stream

Three streams

Intelligent analysis

Tripwire detection, Loitering detection, Intrusion detection, Abandoned object detection, Removed object detection

Bit rate stream smoothing

Supported

Self-adaptive bandwidth

Supported

IP address filtering

Supported

Audio encoding format

G.711a/G.711u/G.726

Communication interface

one RJ45 10/100 Base-T Ethernet interface and one RS-485 interface

SFP

Supported

Alarm interface

2-channel alarm input/2-channel alarm Output, PHOENIX interface

Audio interface

1-channel audio input/1-channel audio Output, 3.5 mm audio interface

Analog video output

1-channel RCA interface

Motion detection

Supported

Privacy masks

Supported

Image quality adjustment

H.264: stream control; MJPEG: image quality control

Image rotation and mirroring

Supported

PU access protocol

ONVIF 2.1, ONVIF profile S

Network protocol

IPv4, HTTPS, RTP, RTCP, SIP, TCP, UDP, ARP, ICMP, DHCP,SSL, NTP

Maximum access streams

4

Local storage

SD or SDHC card (maximum 32 GB, no built-in SD card)

Security mode

User name and password authentication

Media security

Stream encryption using the AES128/192/256

QoS

Supported

Alarm linkage

Supported

SDK

Supported

Power supply
Power consumption

DC : 21.6 V to 26.4 V and 10.8 V to 13.2 V, AC: 21.6 V to 26.4 V, PoE (802.3at);
Self-adaptive power supply automatically regulates power input for stability.
≤9.6W

Operating temperature & humidity
Net weight

-10ºC ~ 50ºC
< 90%(Noncondensing)
0.995kg

Product Appearances (mm)

157.7×79.7×79.4
