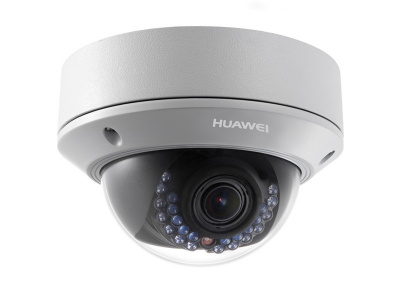

IP-камера Huawei IPC6331-IR(4mm)

Model Item

IPC6331-IR(4mm)

Image sensor

1/3" 3 Megapixel Progressive Scan CMOS

Max. Image Resolution

2048(H)× 1536(V)

Min. illumination

0.07 Lux @(F1.2,AGC ON), 0 Lux with IR

Day&night mode

Auto(ICR)/Color/B/W/Timing/Alarm Trigger

IR Distance

20 m

Electronic shutter speed

1/3 ~ 1/100,000s

Gain control

Supported

White balance

MWB/AWB1/Locked WB/Fluorescent Lamp/incandescent Lamp/Warm Light Lamp/Natural Light

Wide dynamic range

Supported

Backlight compensation

Supported

Lens mount

ø14

Focal length

4mm fixed focus lens

Max. aperture ratio

F2.0

Horizontal Angle of View

2048×1536: 70°, 1920×1080: 79°;

Angle Adjustment range

Pan:0°~ 355°, Tilt: 0°~ 75°, Rotation: 0°~ 355°

Image Compression

H.264 MP,MJPEG

Video resolution and frame rate

50Hz: 25fps (1280 × 960), 25fps (1280 × 720)
60Hz: 30fps (1280 × 960), 30fps (1280 × 720)

Video Bitrate

32Kbps ~ 12Mbps

Multiple streams

Dual streams (Main Stream/Sub Stream)

MTU Configuration

Default: 1500; configuration range: 1280 ~ 1500

IP Address Filtering

Supported

Communication interface

1 RJ45 10M/100M adaptable Ethernet interface,1 RS-485 interface(PELCO-P/D)

Alarm interface

1 alarm input /1alarm output

Audio Communication

Voice intercom(Pick-up is needed), voice broadcasting, channel associated voice

Audio interface

1-channel audio input/1-channel audio Output

Motion detection

Supported

Privacy masking

Supported

Corridor Format

Support aspect ratio 9:16 for 2 megapixel and below 2 megapixel

PU Access Protocol

ONVIF 2.2

Network protocol

ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour

Bitrate Type

Constant bit rate (CBR), Variable Bit Rate (VBR)

ROI encoding

Supported

Storage interface

Micro SD/SDHC /SDXC card (64G)

Digital watermark

Supported

Security Measures

User name and password authentication, and support 802.1x

Front-end Recording

Support SD card schedule recording, alarm recording, and local playback

Alarm linkage

Alarm Trigger: motion detection, tampering alarm, switch Input. Alarm action: switch output, SD card recording, notification on client, sending E-mail

Fast configuration

Support indoor/outdoor scene switch

Max. Video Stream Accessing

Support max. 6 channels video streams accessing

Web Browser

IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +, support multi-language;

Windows XP, Windows7, Windows8

Power supply

Power consumption

DC12V±10% / PoE(802.3af)

5.5W MAX

Operating temperature / humidity

Weather proof rating

Operating temperature: -30ºC ~ 60ºC

Operating humidity: 5% ~ 90% (Non-condensing)

IP66

Vandal–proof Level

Net weight

IEC60068-2-75 Testing,Eh,50J;EN50102,IK10

800g

Physical Product Appearances

ø139.9×99.9mm
